Sironiti Apex Endodontic Contra-angle 115:1
Couldn't load pickup availability
SIRONiTi APEX and SIRONiTi Air⁺ APEX. Security is as valuable as gold..
Don't want to use any additional desktop devices while rooting them? With the SIRONiTi APEX and SIRONiTi Air+ APEX for connection to an apex locator, you will always have the right equipment.
Both are equipped with a torque limiting function: when the set torque is reached, the gold-plated magnetic coupling prevents the file from getting stuck in the root canal due to retro-rotation. SIRONiTi APEX and SIRONiTi Air⁺ APEX – perfect for endodontics.
- Standard for all NiTi canal file systems with Ø 2.35 mm
Files do not get stuck in root canals
Torque levels can be easily adjusted
For electric or air motors
Improved safety for root canal treatments
Once the set torque is reached, the unique retrorotation feature gradually releases the connection, preventing the file from getting stuck in the root canal. This system provides security for root canal treatments – treatment will be even safer when insulating sheaths are used.
Easy to use and versatile

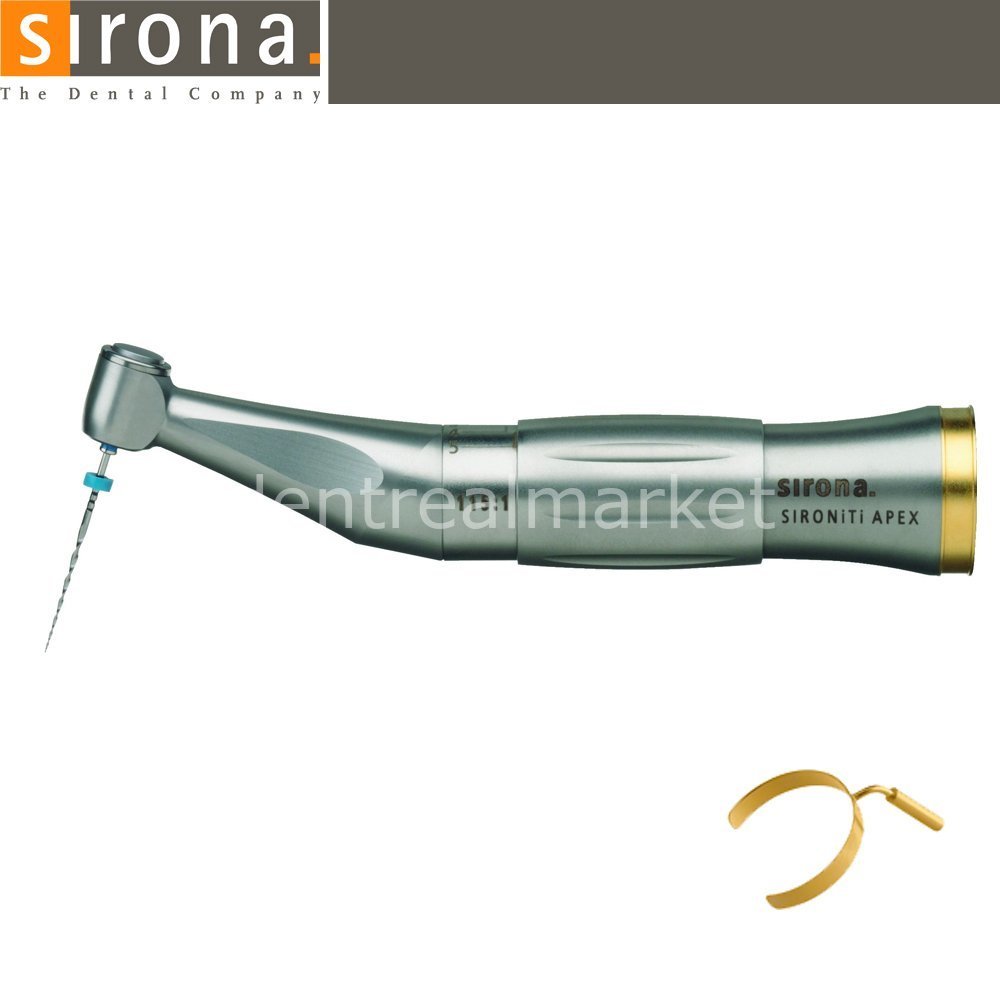

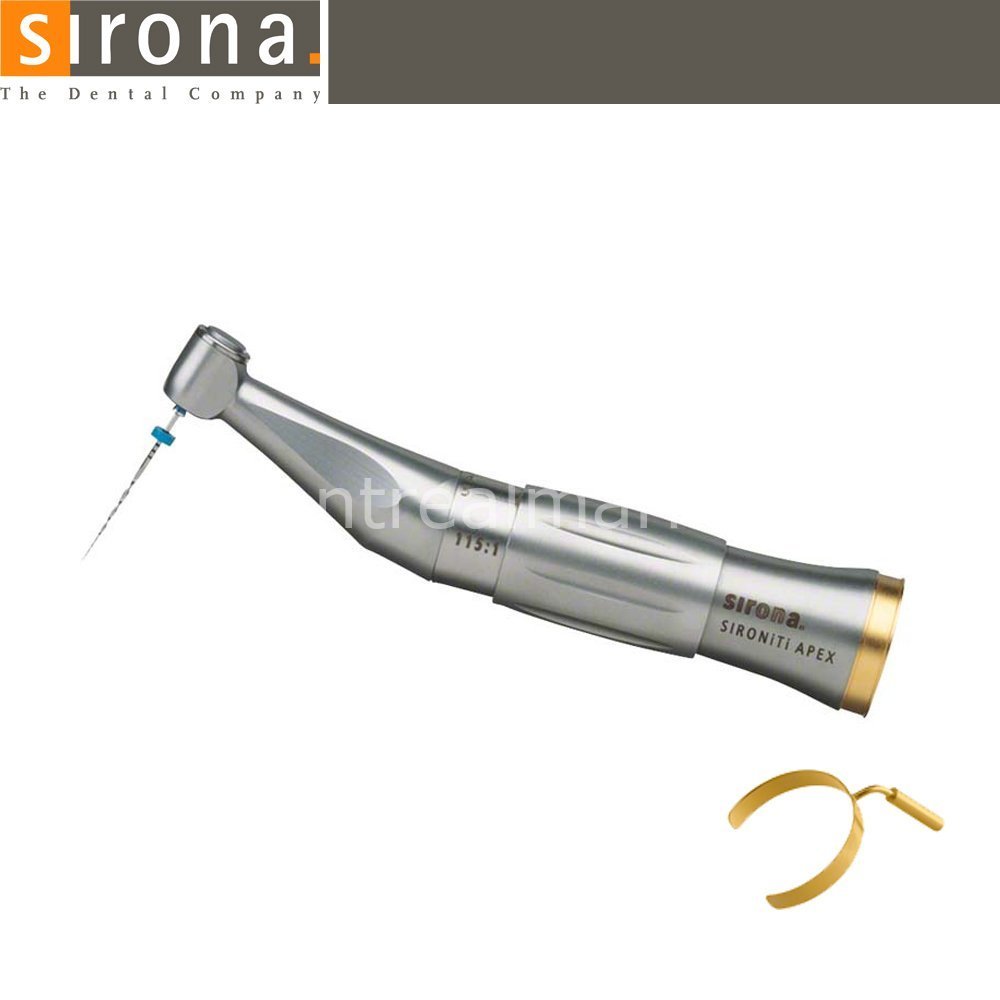

The contra-angle handpiece allows you to position the apex even more conveniently: Thanks to the gold clip, many electronic apex locators can be connected directly without using a file clamp.
With a reduction ratio of 115:1, SIRONiTi APEX is ideal for electric motor. With 66:1 ratio, SIRONiTi Air+ APEX is suitable for air motor
SIRONiTi APEX/SIRONiTi Air+ APEX
Overview of technical data.
| Recommended use depending on the file system | SIRONiTi APEX | SIRONiTi Air+ APEX |
|---|---|---|
| Electrical Engine |  |
|
| Air motor | - | |
| Technical Data | SIRONiTi APEX | SIRONiTi Air+ APEX |
|---|---|---|
| Reduction | 115 : 1 | 66 : 1 |
| Max. Working Speed | 350 rpm | 600 rpm |
| Rotation | 360° | 360° |
| Tong System | Push-button | Push-button |
| Equipment | 2.35 RA | 2.35 RA |
| Torque stages | 5 | 5 |
| NiTi files | All standard clamps systems |
All standard clamps systems |
| Sterilization in autoclave | up to 134°C | up to 134°C |
| Types | Description / Equipment | REF |
|---|---|---|
| SIRONiTi Air+ APEX | Allow an air motor or higher an electric motor with a given speed range for connection to file systems |
63 24 615 |
| SIRONiTi APEX | Gold clip for attachment to an apex locator Root canal preparation without an apex locator for gold clipless |
61 74 234 |
| Clip Ø 2 mm (gold-plated) |
For example for the following: ProPex and ProPex II – Dentsply Raypex 4 and Raypex 5 – VDW Root ZX – Morita Apex Pointer – MicroMega iPEX – NSK Mini apex locator – Sybron Endo |
61 73 681 |
| Klips Ø 2 mm (gold-plated) |
eg. ApexMaster – for EMS | 61 73 699 |
| Insulation sheath | Insulation sleeve for endo (5 pieces) |
