Hunter 3D DLP Resin 3DPrinter Digital Light Processing
Couldn't load pickup availability
The preparation time for this product is 15 business days. We would like to remind you again that you are responsible for paying any customs fees that may occur in your country.
- High precision 3d printing based on DLP (Digital Light Processing) technology, meeting dental & jewelry industry’ accuracy requirements.
- Self-developed 1920*1080 resolution light engine: well-distributed light intensity, print parts, and accessories with high precision and fine details.
- Special Precision Compensation Algorithm: gray compensation & correction algorithm ensures smoother surface and higher dimensional accuracy.
- 3.5-inch touchscreen: professional quality 3d prints start from clicks, offer an intuitive user experience.
- Removable aluminum resin VAT and FEP Films contribute to minimal resin waste, long durability, and low maintenance costs.
- Compatible with multi-brand photopolymer resins, multiple preset resin 3d printing modes for specific brand resins.
- DLP Printer slicing software FlashDLPrint lets you prepare 3d models for quick and accurate dental & jewelry application printing.
- Multiple 3d model transfer options: USB cable, USB stick, WiFi.
Product Description

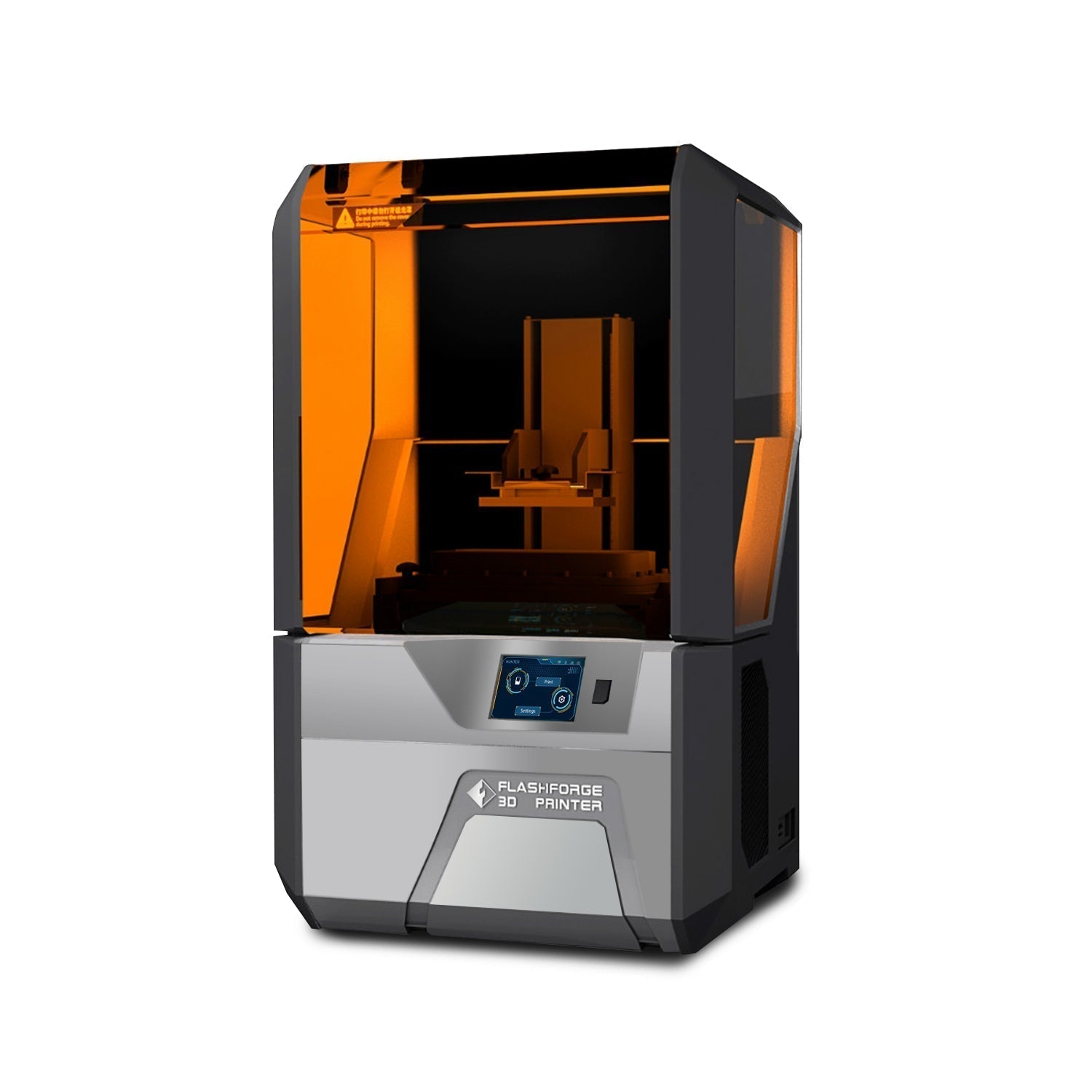

The FlashForge Hunter is a DLP (Digital Light Processing) 3D Printer, which allows the user to a print a 3D model in highly-detail. Photopolymer resin is adopted as a printing material for Hunter DLP 3D printer. As it can 3D print a whole layer of a 3D model at one time, the printing time is generally consumed less than that of the SLA 3D printer.
COMPATIBLE TO OF THIRD PARTY RESIN
FlashForge Hunter DLP 3D Printer is compatible with 3rd party 3D printing resins, so users can have more flexibility to try the different type of resin such as castable resin, tough resin, biocompatible resin etc. Therefore, Hunter DLP 3D Printer especially useful for making tough highly detailed engineering prototype, castable ring model, or even making the medical model.
SELF-DEVELOPED LIGHT ENGINE
FlashForge Hunter DLP 3D printer uses the self-developed Full HD 1080p resolution light engine, which can ensure more stable LED intensity and better printing quality. Also, as Hunter DLP 3D printer adopts FlashForge’s self-developed light engine, the light engine can adjust to a particular wavelength (405nm LED) for 3D printing. This fine tune can best fit the printing process, which can lead to a better printing result.
LINEAR MOTION GUIDE ACTUATOR
industrial Z axis LM guide actuator module enables an accuracy of the micron, achieving smoother printing surface.
ALUMINIUM RESIN VAT FEP FILM
Easily remove resin vat for the change of material to ensure little material waste. Durable aluminium resin vat requires no maintenance. The long lasting FEP vat film can easily be replaced.
BUILD PLATE
The build plate can be replaced quickly and there is no need for calibration. That means faster printing speed and easier to do post-treatment.
TOUCH SCREEN
The simple and intuitive user interface that is super easy to use.
ADVANCED MAINBOARD DESIGN
Advanced architecture main board and self-developed proprietary light engine work together perfectly. Dual-core 800 MHz ARM processor ensures high-performance and better user experience. The mainboard is designed and made in a 10-layer high precision board, safeguarding EMC, the integrity and the stability of the projection signal.
TECHNICAL SPECIFICATIONS
| 3D Printer Model Name | FlashForge Hunter |
| 3D Printing Technology | DLP (Digital Light Processing) |
| Printing Size | 120 × 67.5 × 150 mm (L x B xH) |
| Z axis layer height | 25/50 µm (0.025 / 0.05 mm) |
| X-Y axis resolution | 62.5 µm (0.0625 mm) |
| Light source | 405 nm LED; 50,000 hours life span |
| 3D Printing Software | FlashPrint |
| 3D File format | STL |
| Connectivity | USB Cable, USB Stick, Wi-Fi |
| Printer dimensions | 360 x 310 x 565 mm |
| Printer weight | 17.8 kg |
| Power | 100-240v, 50-60Hz, 1A |
| 3D PRINTING SPECIFICATIONS | |
| Build volume (in liters) | 1.215 |
| Build volume (in millimeters) | 120 × 67.5 × 150 mm |
| Layer resolution | Z: 25 / 50 microns (0.025 / 0.05 mm) | X-Y: 62.5 microns (0.0625 mm) |
| Print technology | Digital Light Processing (405 nm LED with 50,000 hours life span) |
| CONNECTIVITY | |
| USB | Yes |
| Wi-Fi | Yes |
| SIZE & WEIGHT | |
| Product dimensions | 360 x 310 x 565 mm |
| Product weight | 17.8 kg |
| SOFTWARE | |
| File formats | STL |
| Included software | FlashPrint |
